Draw your Diagram with PlantUML

Ref:

PlantUML Syntax:

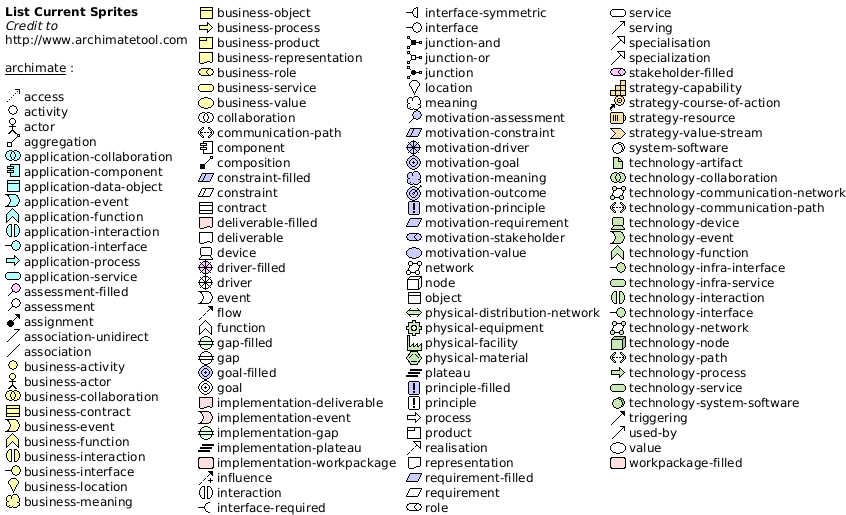

listsprite

PlantUML Syntax:

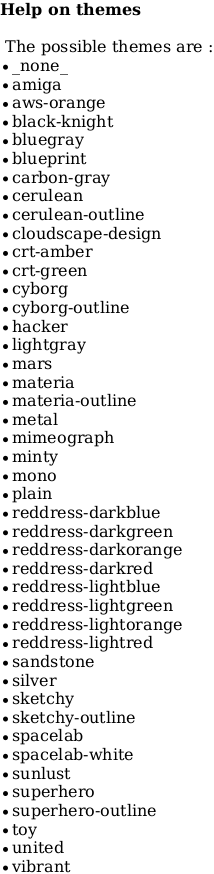

help themes

PlantUML Syntax:

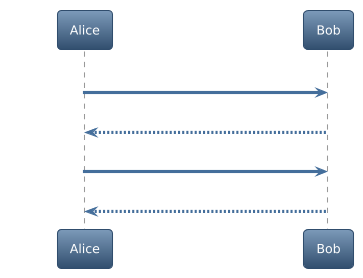

!theme spacelab
Alice -> Bob: Authentication Request
Bob --> Alice: Authentication Response

Alice -> Bob: Another authentication Request
Alice <-- Bob: another authentication Response

PlantUML Syntax:

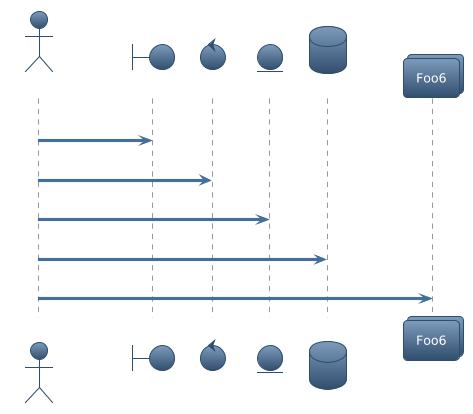

!theme spacelab
actor Foo1
boundary Foo2
control Foo3
entity Foo4
database Foo5
collections Foo6
Foo1 -> Foo2 : To boundary
Foo1 -> Foo3 : To control
Foo1 -> Foo4 : To entity
Foo1 -> Foo5 : To database
Foo1 -> Foo6 : To collections

PlantUML Syntax:

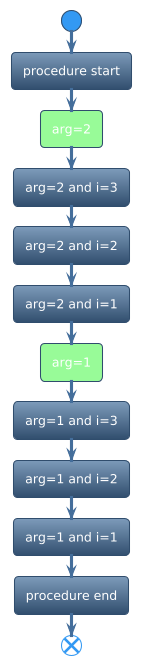

!theme spacelab
!procedure $foo($arg)
  :procedure start;
  !while $arg!=0
    !$i=3
    #palegreen:arg=$arg;
    !while $i!=0
      :arg=$arg and i=$i;
      !$i = $i - 1
    !endwhile
    !$arg = $arg - 1
  !endwhile
  :procedure end;
!endprocedure

start
$foo(2)
end

some not working plantuml_map in worldpress

PlantUML Syntax:

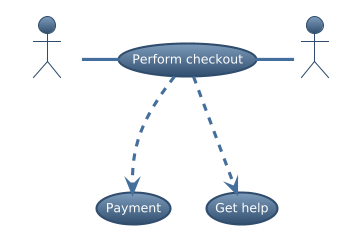

!theme spacelab
Customer - (Perform checkout)
(Perform checkout) ..> (Payment) : include
(Perform checkout) ..> (Get help): extends
(Perform checkout) - Clerk

PlantUML Syntax:

!theme spacelab
@startuml
[Bitbucket] as Bitbucket
!theme spacelab
package Bitbucket {
	component app1 src2 --> app2 src3 --> app3 src4 --> app4 src5 --> app5 src6 --> app6 src7 --> app7 src10 --> app8 src9 --> st src9 --> it src8 --> jks src11 --> db st <-- robot st --> st_report it <-- pabot it --> it_report jks --> rf_runner jks --> rebot rf_runner --> robot rf_runner --> pabot st_report --> rebot it_report --> rebot @enduml " usemap="#plantuml_map">
